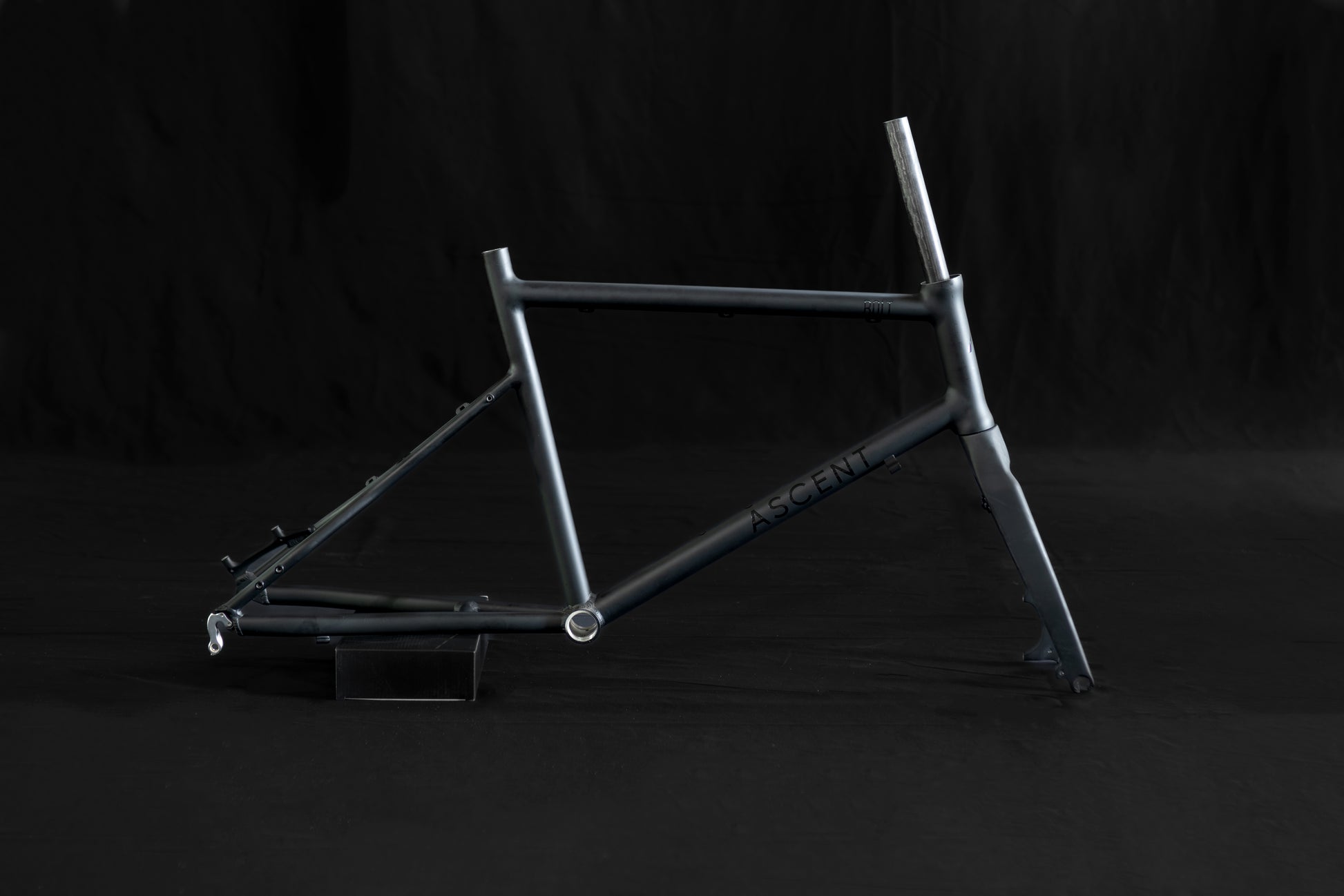

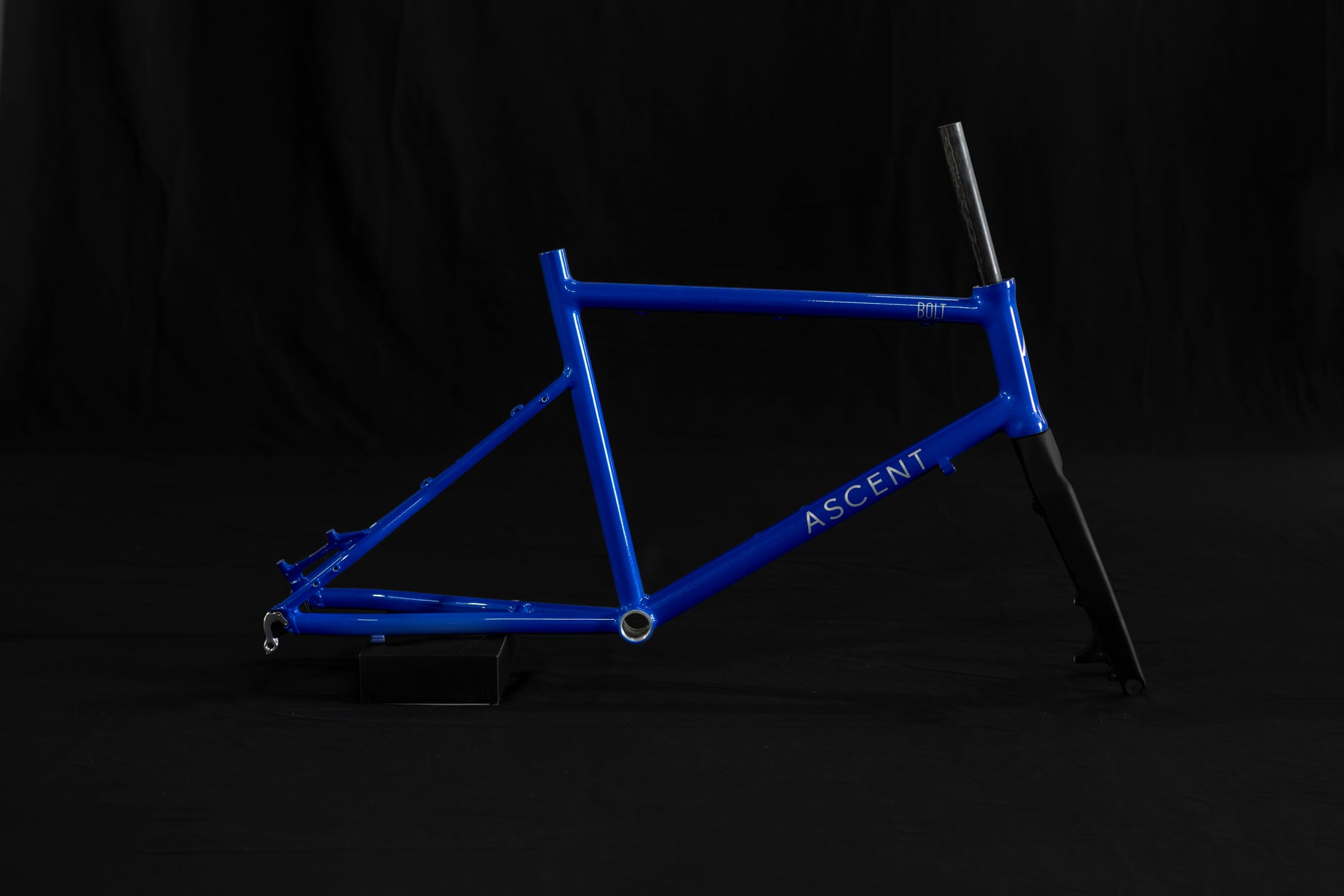

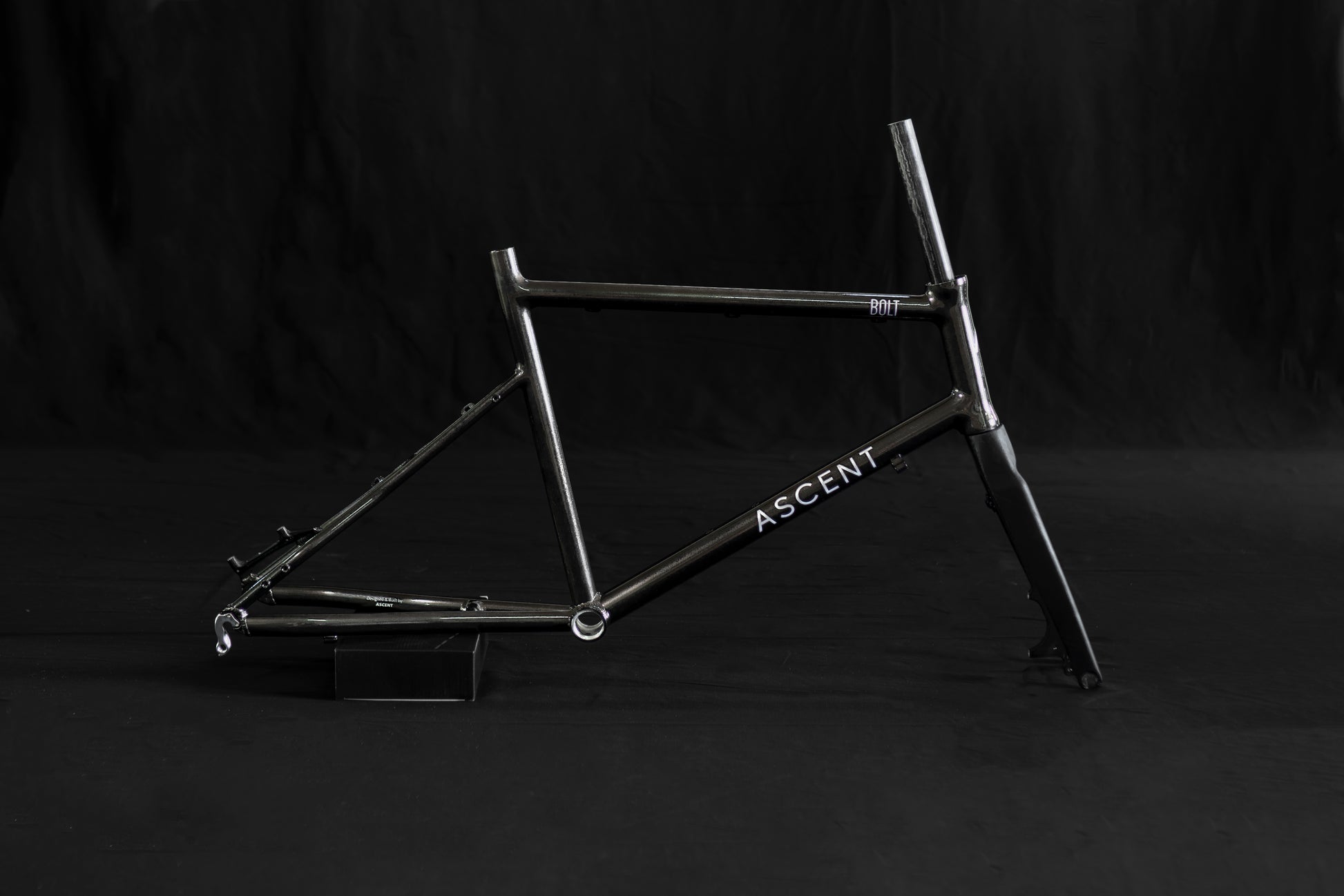

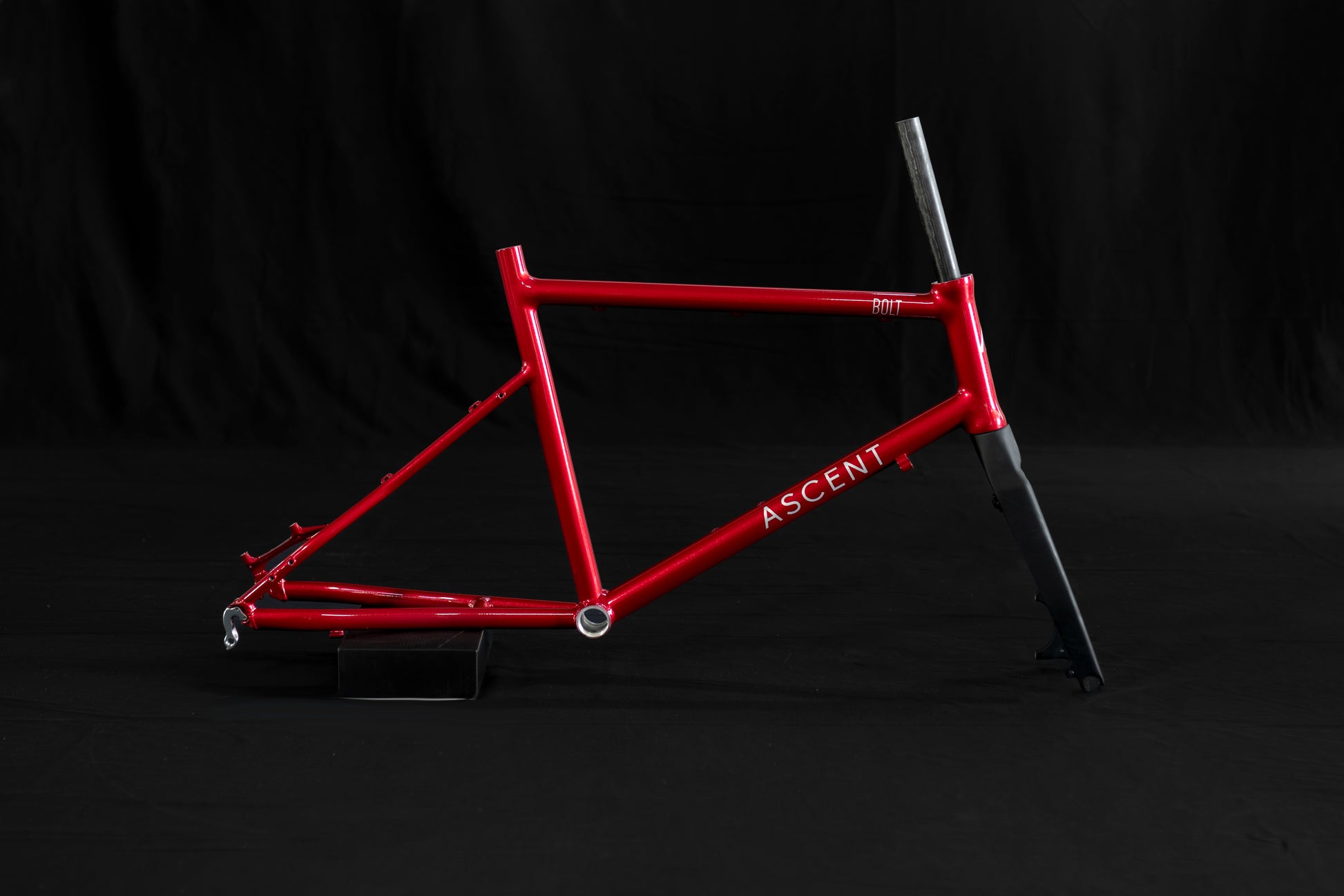

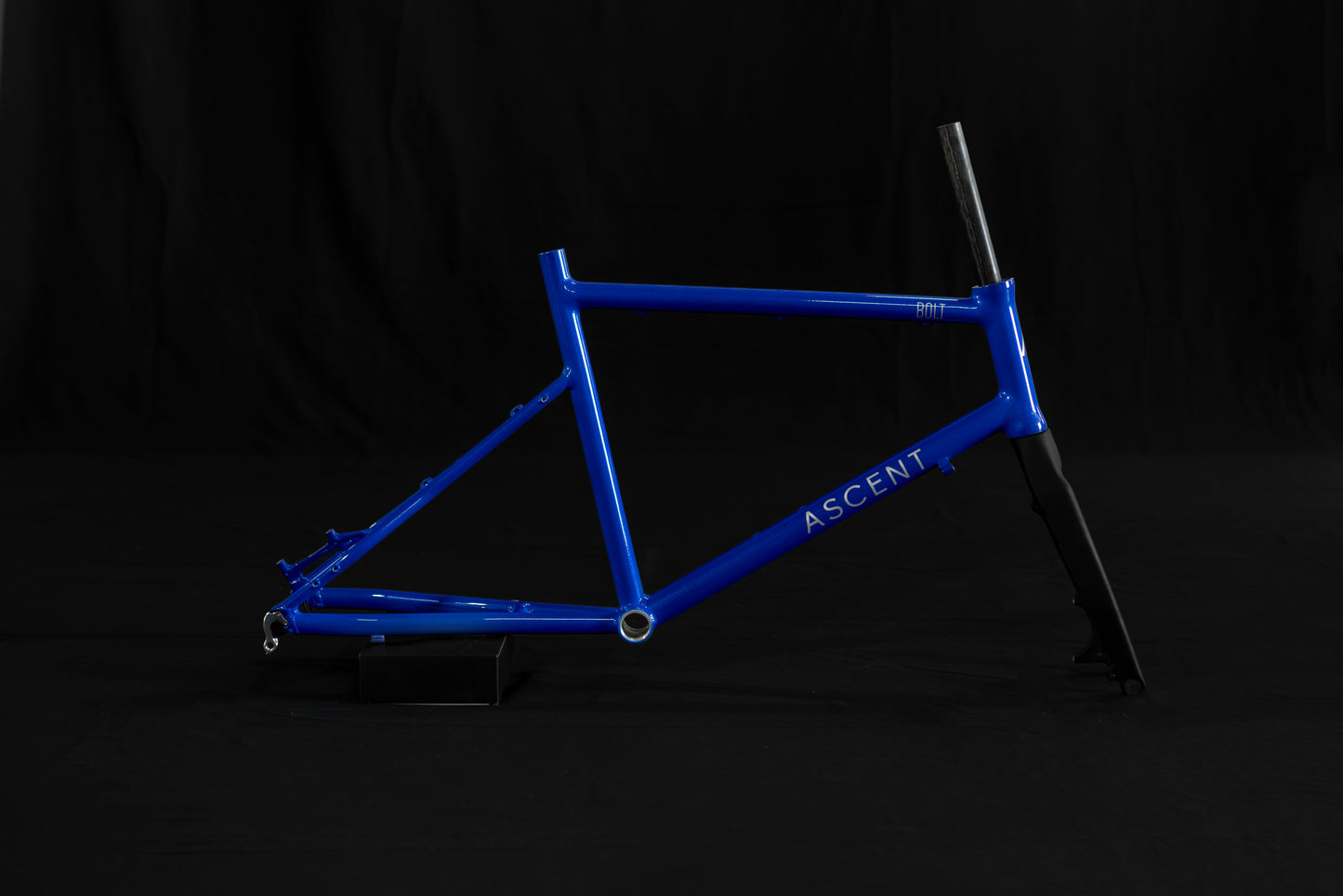

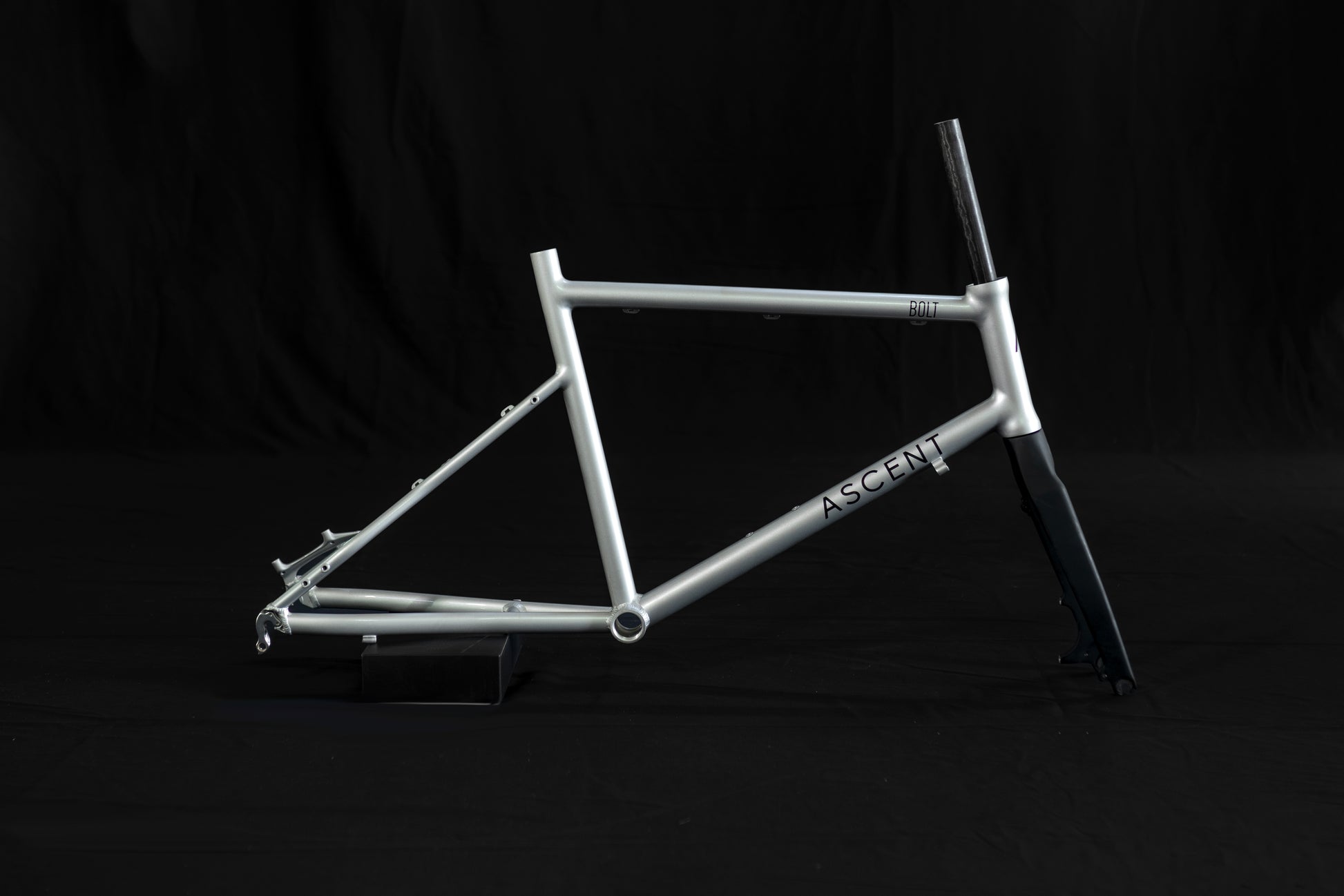

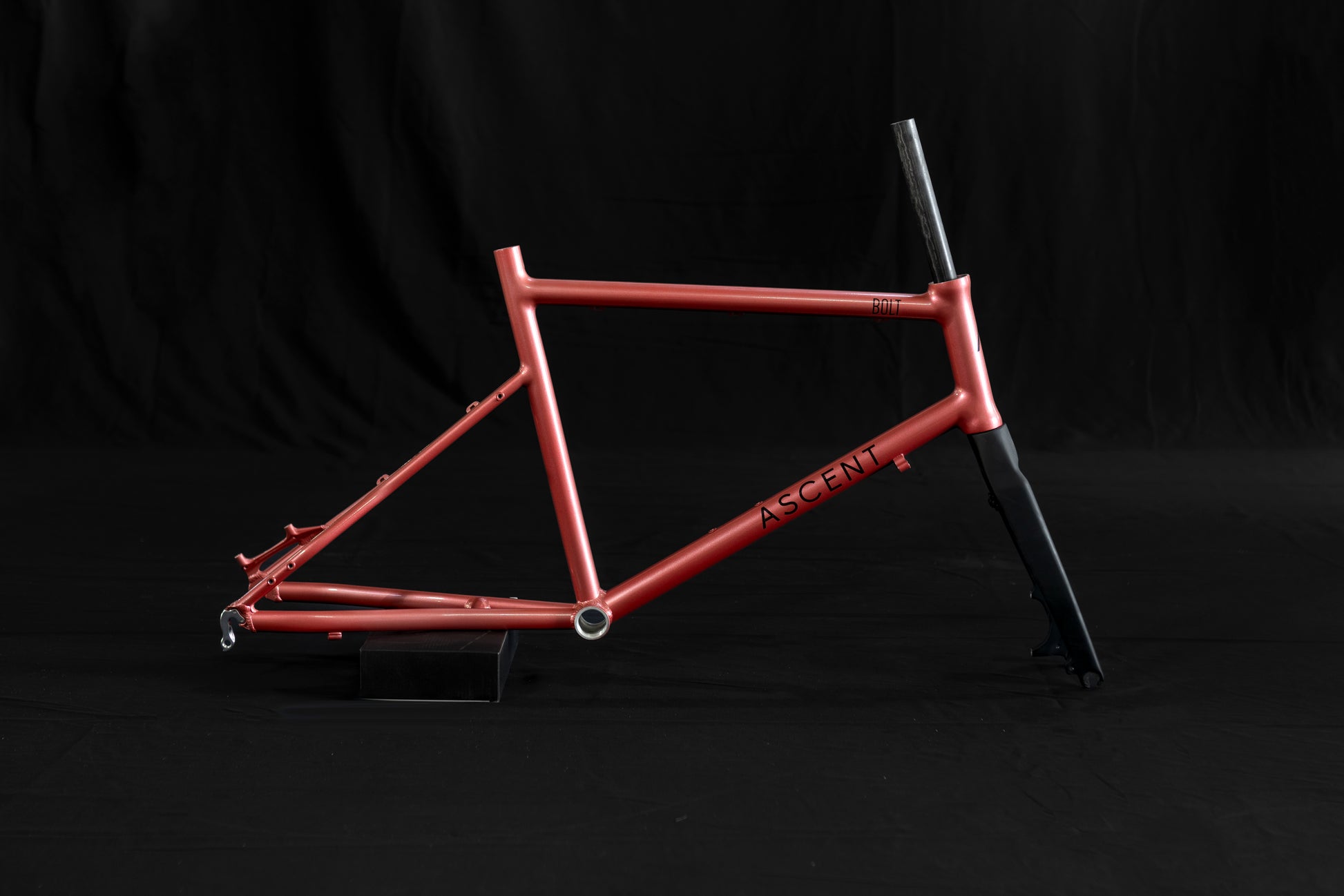

Bolt Frameset

The mainstay of the Ascent Mini Velo line, the Bolt is designed from the ground up to be light, nimble, and customizable - perfect for the urban rider.

Built from double-butted 6066 Aluminium Alloy tubes that are 30% stronger than regular 6061, then smooth-welded to perfection. The frame weighs in at just 1380g, and the carbon fork weighs in at a scant 400g, making the Bolt frameset one of the lightest alloy Mini Velo frames on the market.

PROVIDED WITH FRAMESET:

Frame x1
Fork x1
Headset x1
Compression Plug x1
15cm Carbon Spacer x1
Seatpost Clamp x1
Frame barrel adjusters x2
Frame cable guide x1

FRAME SPECIFICATIONS:

Frame weight: 1380g (approx)
Fork weight: 400g (approx)

FRAME GEOMETRY

Head Tube Angle: 72 degrees
Seat Tube Angle: 73 degrees
Head Tube Length: 185mm
Seat Tube Length: 460mm
Chainstay: 425mm
Top Tube Length: 526mm
Wheelbase: 1013mm
Front Centre Distance: 589mm
Bottom Bracket Rise: 25mm
Reach (assuming full spacer length): 351mm
Stack (assuming full spacer length): 585mm

BUILD COMPATIBILITY

Wheels/Tyres: Up to 50-406 (20x 2.00") or 37-451 (20x1 3/8")​
Dropout width: 100mm (front), 135mm (rear)
Brakes: Caliper or Disc (160mm, Post Mount)
Bottom Bracket: BSA Threaded
Chainring: Up to 60T single, >55t Double​
Bars: Flat, Riser, Bullhorn, Drop​
Stem: Any 28.6mm (1-1/8") Steerer
Seatpost: Any 27.2mm​
Fenders: Supported​
Rear rack: Supported
